Trykk på bilde for datablad

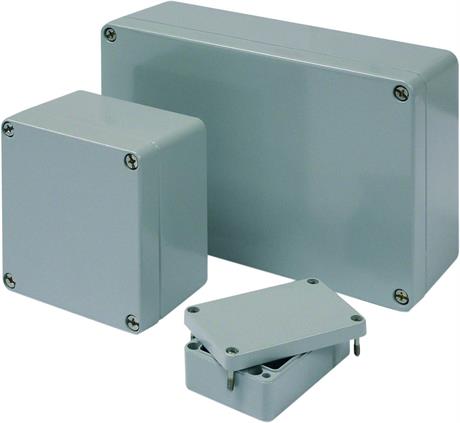

Bokser: ABS Standard

Material Acrylnitrile styrene butadiene (ABS) Polycarbonate (PC)

Colour similar to RAL 7035 (Further on Request)

Sealing Chloroprene (Silicone on Request)

Operating Temperature -40°C to +80°C (ABS) /  -40°C to +100°C (PC)

Protection Class IP66

Trykk på bilde for datablad

Bokser: Polycarbonate

Material Acrylnitrile styrene butadiene (ABS)

Colour similar to RAL 7035 (Further on Request) / Chloroprene (Silicone on Request)

Operating Temperature -40°C to +80°C (ABS) / -40°C to +100°C (PC)

Protection Class IP66

Trykk på bilde for datablad

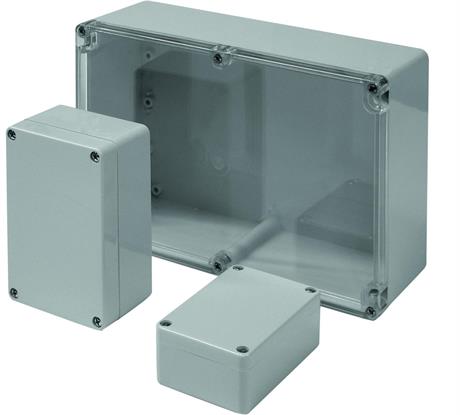

Bokser med klart lokk: Polycarbonate standard encloures with transparent lid

Material Acrylnitrile styrene butadiene (ABS) Polycarbonate (PC)

Colour similar to RAL 7035 (Further on Request)

Sealing Chloroprene (Silicone on Request)

Operating Temperature -40°C to +80°C (ABS) /  -40°C to +100°C (PC)

Protection Class IP66

Trykk på bilde for datablad

Bokser: Polyester

Material Polyester (glass fibre reinforced/thermoset)

Colour RAL 7000 (Further on Request)

Sealing Chloroprene (Silicone on Request)

Operating Temperature -40°C to +100°C

Protection Class IP66

Trykk på bilde for datablad

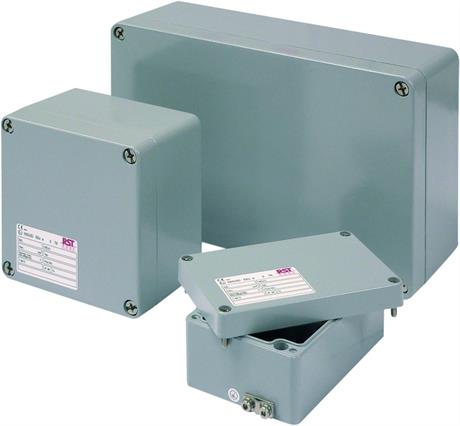

Bokser: Aluminium til Elektronikk

Material Aluminium / Al Si 12

Colour RAL 7038 (Further on Request)

Sealing Polyurethane (Further on Request)

Operating Temperature -40°C to +90°C

Protection Class IP66 (higher protection on Request)

Trykk på bilde for datablad

Bokser: Standard Aluminium / UL

Material Aluminium / Al Si 12

Colour RAL 7001 (Further on Request)

Sealing Polyurethane (Further on Request)

Operating Temperature -40°C to +90°C

Protection Class IP66 (higher protection on Request)

Trykk på bilde for datablad

Ex e / ATEX Aluminiums Bokser

Material Aluminium / Al Si 12

Colour RAL 7001

Sealing Silicone

Operating Temperature -20°C to +40°C - equal to T6 / +85°C surface temperature (Further on Request)

Protection Class IP66

ATEX-Marking Ex II 2 G / Ex d e ia [ia] mb IIC T6, T5, bzw. T4 Gb, Ex II 2 D / Ex tb IIIC T85°, T100°C bzw. T135°C Db

Trykk på bilde for datablad

Ex ia / ATEX Aluminiums bokser

Material Aluminium / Al Si 12

Colour RAL 7001

Sealing Silicone

Operating Temperature -20°C to +40°C - equal to T6 = +85°C surface temperature (Further on Request)

Protection Class IP66

ATEX-Marking Ex II 2 G / Ex d e ia [ia] mb IIC T6, T5, bzw. T4 Gb, Ex II 2 D / Ex tb IIIC T85°, T100°C bzw. T135°C Db

Trykk på bilde for datablad

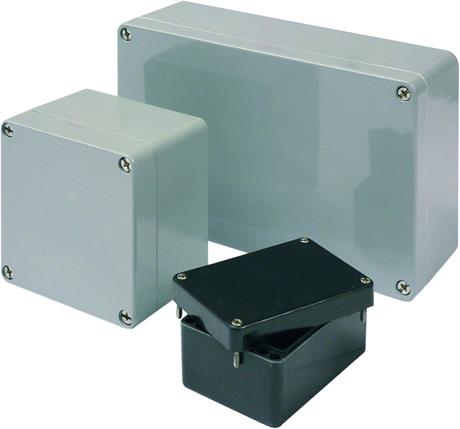

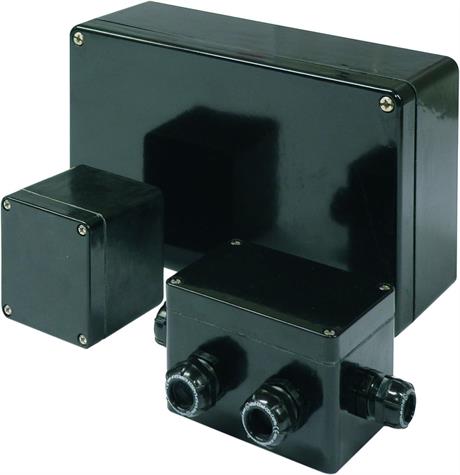

Ex e / ATEX Polyester bokser

Material Polyester, Graphite Added (glass fibre reinforced/thermoset)

Colour RAL 9011, black

Sealing Silicone

Operating Temperature -20°C to +40°C - equal to T6 = +85°C surface temperature (Further on Request)

Protection Class IP66

ATEX-Marking Ex II 2 G / Ex d e ia [ia] mb IIC T6, T5, bzw. T4 Gb, Ex tb IIIC T85°, T100°C bzw. T135°C Db

Trykk på bilde for datablad

Ex ia / ATEX Polyester bokser

Material Polyester, Graphite Added (glass fibre reinforced/thermoset)

Colour RAL 9011, black

Sealing Silicone

Operating Temperature -20°C to +40°C - equal to T6 = +85°C surface temperature (Further on Request)

Protection Class IP66

ATEX-Marking Ex II 2 G / Ex d e ia [ia] mb IIC T6, T5, bzw. T4 Gb, Ex tb IIIC T85°, T100°C bzw. T135°C Db

Trykk på bilde for datablad

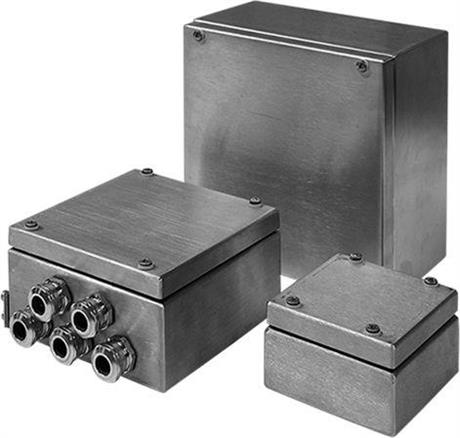

Stainless steel bokser

Material Stainless Steel

Sealing Silicone (Further on Request)

Operating Temperature -40°C to +80°C

Protection Class IP66 (higher protection on Request)

Trykk på bilde for datablad

Ex e / ATEX Stainless steel bokser

Material Stainless Steel

Sealing Silicone

Operating Temperature -55°C to +135°C

Protection Class IP66

ATEX-Marking Ex II 2 G / Ex e IIC Gb, Ex II 2 D / Ex tb IIIC Db

Trykk på bilde for datablad

Ex ia / ATEX stainless steel bokser

Material Stainless Steel

Sealing Silicone

Operating Temperature -55°C to +135°C

Protection Class IP66

ATEX-Marking Ex II 2 G / Ex e IIC Gb, Ex II 2 D / Ex tb IIIC Db
