Trykk på bilde for datablad Trykk på bilde for datablad

Metall Nippel Euro-Top Brass

Material Nickel Plated Brass

Sealing Chloroprene

Clamping Insert Polyamide 6

O-Ring Perbunan

Operating Temperature -40°C to +100°C / intermittent -40°C to +150°C

Thread Metric acc. to EN 60423

Protection Class IP66 / IP68 / IP69

Integrated strain relief acc. to EN 50262.





-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Trykk på bilde for datablad Trykk på bilde for datablad

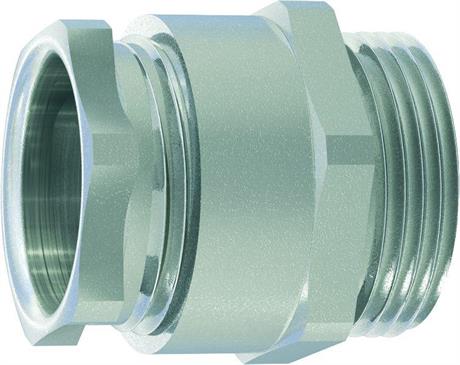

Metall Nippel Euro-Tight

Material Nickel Plated Brass

Sealing Chloroprene (Silicone on Request - Only for Type A)

O-Ring Perbunan

Operating Temperature -40°C to +100°C / intermittent -40°C to +150°C / (Silicone: -60°C to +230°C)

Thread Metric acc. to EN 60423

Protection Class IP68

Very flat and space saving design without any Polyamide parts.













-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



Trykk på bilde for datablad Trykk på bilde for datablad

Nickel Plated Brass / Stainless Steel 1.4305 / 303

Sealing Chloroprene

Operating Temperature -20°C to +100°C

Thread Metric acc. to EN 60423

Protection Class IP66 / IP68 / IP69k

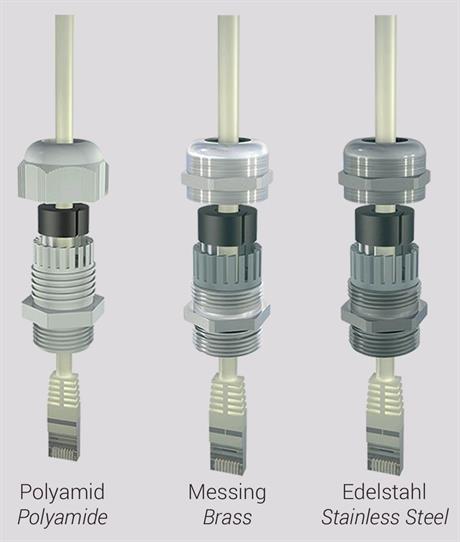

For the assembly of cables with ready fixed connectors (RJ-45. USB etc.).

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Trykk på bilde for datablad Trykk på bilde for datablad

Kondens og luft Nippel Pressure Balance Cable Gland

Material Nickel Plated Brass

Sealing Chloroprene

Vent Element PTFE

O-Ring Perbunan - at Nickel Plated Brass

Operating Temperature -20°C to +100°C

Thread Metric acc. to EN 60423, PG acc. to DIN 40430

Protection Class IP66 / IP67

To avoid water condensation in highly sealed enclosures.









-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



Trykk på bilde for datablad Trykk på bilde for datablad

Euro-Top FrontFix Brass

Material Nickel Plated Brass

Sealing Chloroprene

Flat Sealing Chloroprene

Operating Temperature -20°C to +100°C / intermittent -30°C to +150°C

Protection Class IP66 / IP68

Note Quick fitting gland mountable in metric clearance hole.



-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Trykk på bilde for datablad Trykk på bilde for datablad

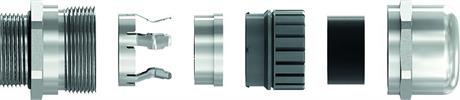

EMC Nippel Euro-Top EMC (4th Generation)

Material Nickel plated Brass

Sealing Cloroprene

Clamping Insert Polyamide 6

O-Ring Perbuna

Operating Temperature -40°C to +100°C

Intermittent -40°C to +150°C

Protection Class IP66 / IP68 / IP69k

Very easy and fast to assemble; vibration-tested; patented, active contact system; easy dusassembling.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Trykk på bilde for datablad Trykk på bilde for datablad

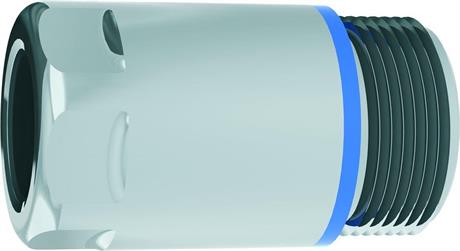

Euro-Top Hygienic Nippel

Material Stainless Steel (303)

Sealing FDA Approved Thermoplastic Elastomer

Operating Temperature -20°C to +100°C, intermittent -40°C to +150°C

Thread Metric acc. to EN 60423

Protection Class IP66 / IP68 / IP69

Delivery incl. locknut. Especially suitable for use in the food industry.





-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Trykk på bilde for datablad Trykk på bilde for datablad

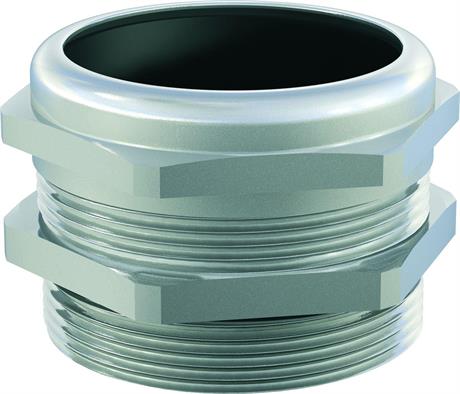

Metall Nippel Brass Cable Gland Standard

Material Nickel Plated Brass

Sealing Perbunan

Operating Temperature -30°C to +80°C

Thread Metric acc. to EN 60423 / PG acc. to DIN 40430

Protection Class IP54

Also available with multiple perforation sealing.















-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Trykk på bilde for datablad Trykk på bilde for datablad

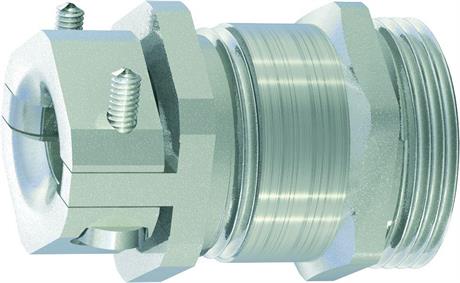

Brass Cable Gland with Centric Strain Relief

Material Nickel Plated Brass

Sealing Perbunan

Operating Temperature -30°C to +80°C

Thread Metric acc. to EN 60423 / PG acc. to DIN 40430

Protection Class IP54

Supplied with multiple perforation sealing for several cable diameters.







-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Trykk på bilde for datablad Trykk på bilde for datablad

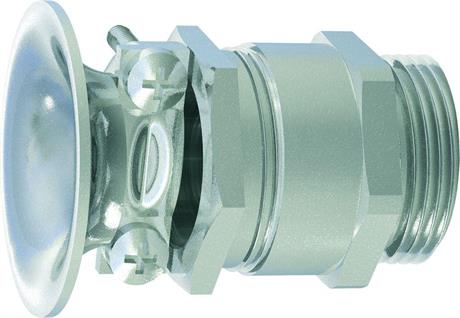

Brass Cable Gland with Bending Protection+Strain Relief

Material Nickel Plated Brass

Sealing Perbunan

Operating Temperature -30°C to +80°C

Thread Metric acc. to EN 60423 / PG acc. to DIN 40430

Protection Class IP54

Supplied with multiple perforation sealings for several cable diameters.









-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Trykk på bilde for datablad Trykk på bilde for datablad

Kondens og luft Nippel Stainless Steel M 40

Material Stainless Steel 303

Membrane Acryl-CoPolymer

O-Ring Perbunan - at Stainless Steel

Operating Temperature Stainless Steel: -40°C to +105°C

Thread Metric acc. to EN 60423

Protection Class IP66 / IP67

To avoid water condensation in highly sealed enclosures. Supplied incl. locknut.



-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Trykk på bilde for datablad Trykk på bilde for datablad

Kondens of luft Breather-Drainer Ex e

Material Nickel Plated Brass; Natural Brass; Stainless Steel 316L; Aluminium; Polyamide

O-Ring Nitrile (Further on Request)

Operating Temperature -30°C to +85°C - at Nickel Plated Brass (others see product documentation)

Thread Metric acc. to EN 60423 / NPT acc. to ANSI B1.20.1

Protection Class IP66

ATEX Marking Ex II 2 GD / Ex e IIC Gb / Ex tb IIIC Db / Ex I M2 / Ex e I/II Mb GB / Ex tb IIIC Db

Supplied incl. special locknut.







-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
