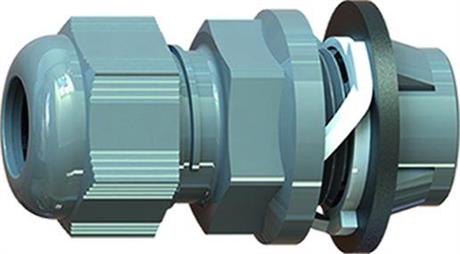

Euro-Top FrontFix Polyamide

Material Polyamide 6

Sealing Chloroprene

Flat Sealing Chloroprene

Operating Temperature -20°C to +100°C

intermittent -30°C to +150°C

Protection Class IP66 / IP68

Note Quick fitting gland mountable in metric clearance hole.

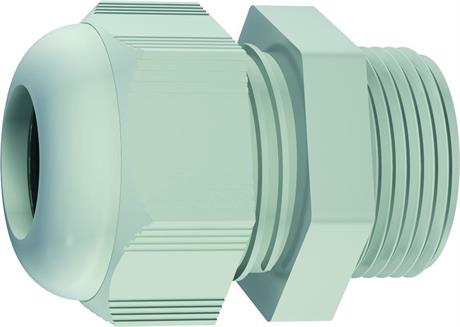

Euro-Top Polyamide

Material Polyamide 6

Sealing Chloroprene

Operating Temperature -20°C to +100°C

Intermittent -30°C to +150°C

Thread Metric acc. to EN 60423

Protection Class IP66 / IP68

Note Integrated strain relief acc. to EN 50262.

Billig Nippel med god kvalitet / Euro-Top Polyamide

Material Polyamide 6

Sealing Chloroprene

Operating Temperature -20°C to +100°C

Intermittent -30°C to +150°C

Thread Metric acc. to EN 60423 and PG acc. to DIN 40430

Protection Class IP67

Note The ideal and convenient cable gland for standard applications.

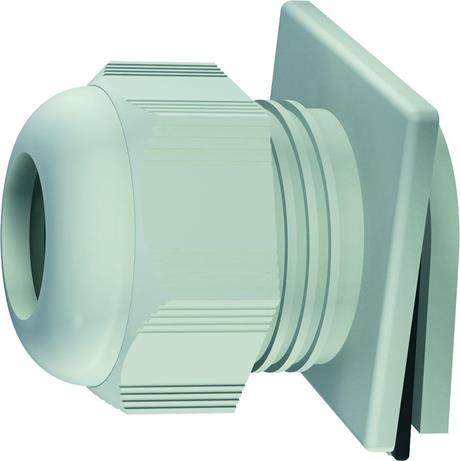

Euro-Top Plug In Gland

Material Polyamide 6

Sealing Chloroprene

Operating Temperature -20°C to +100°C / intermittent -30°C to +150°C

Protection Class IP65

Note Quick fitting cable entries for the installation for complete construction units at enclosures (e.g. cable looms).

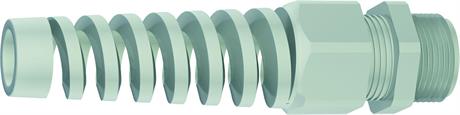

Euro-Top with Bending Protection Polyamide

Material Polyamide 6

Sealing Polychloroprene Nitrile Rubber

Operating Temperature -20°C to +100°C

Thread Metric acc. to EN 60423 and PG acc. to DIN 40430

Protection Class IP68

Euro-Top Connect for kabel med RJ-45. USB etc. påmontert

Material Polyamide 6 / Nickel Plated Brass / Stainless Steel 1.4305 / 303

Sealing Chloroprene

Operating Temperature -20°C to +100°C

Thread Metric acc. to EN 60423

Protection Class IP66 / IP68 / IP69k

Note For the assembly of cables with ready fixed connectors (RJ-45. USB etc.

Den nye Euro-Top CONNECT, er utstyrt med en spesiell splittet pakning/tetning.

Det er mulig å montere kabler med forhåndsmonterte kontakter enkelt og raskt. Takket være denne nye tetningsringen. Det er mulig å montere store kontakter med en diagonal tverrsnitt på opptil 18mm. Samtidig som du bruker tynne kabler fra 3 mm tykkelse. Du slipper dyre spesialløsninger. Nippelen sikrer montering med høy IP/tetningskvalitet og meget god strekkavlastning. Euro-Top CONNECT kan brukes universelt for et bredt spekter av alternative kontakter. Dette gjelder både små kontakter (f.eks. M8), som primært brukes innen elektroteknikk, og til større kontakter som USB og RJ-45. CONNECT nippelen fra Treotham er tilgjengelig i en rekke materialer, f.eks. polyamid, messing (forniklet) og rustfritt stål, gjør den egnet til bruk i praktisk talt alle bruksområder. CONNECT Nippelen er tilgjengelig i størrelsene M20x1.5 / M25x1.5 (polyamid) og M32x1.5 (forniklet messing, rustfritt stål). De kapslingsklassifiseringer IP66, IP68 og IP69k.

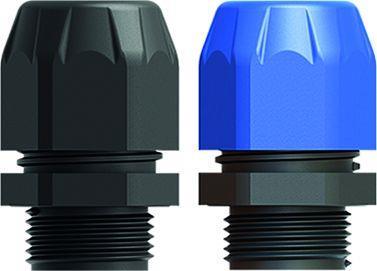

Ex Nippel Euro-Top X 4th Generation Polyamide

Material Polyamide 6

Sealing Chloroprene (CR) / Silicone (SIL)

Flat Sealing Washer Chloroprene (CR) / Silicone (SIL)

Operating Temperature CR: -40°C to +70°C and SIL: -60°C to +70°C

Thread Metric acc. to ISO 965-3 (Further on Request)

Protection Class IP66 / IP68

ATEX Marking Ex II 2 G / Ex eb IIC Gb / Ex II 2 D / Ex tb IIIC Db

Note Impact Resistance 7 Joule.

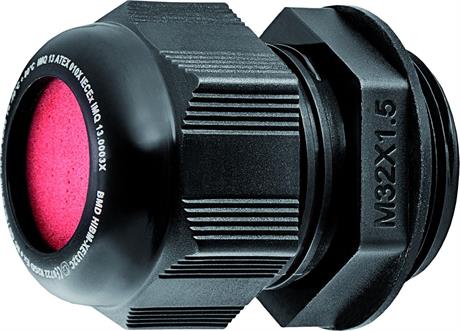

Ex Nippel Euro-Top X3 HI Polyamide

Material Polyamide 6

Sealing Chloroprene (CR) / Silicone (SIL)

Flat sealing Chloroprene (CR) / Silicone (SIL)

Operating Temperatures  -40°C to +70°C (Chloroprene) and -60°C to +70°C (Silicone)

Thread metric acc. to ISO 965-1/965-3

Protection class IP66 / IP68

Certificate IMQ 13 ATEX 010X

Marking Ex II 2 GD / Ex e IIC Gb / Ex tb IIIC Db IP66/68

Note Impact resistance 7 Joule / EN60079-0:2012

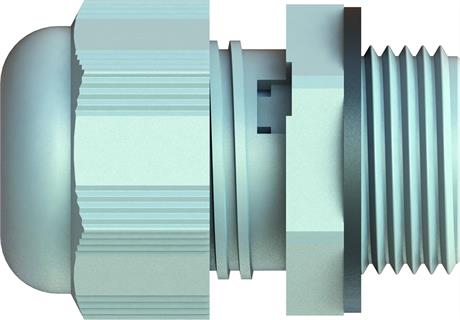

Kondens og lufte Nippel Pressure Balance Cable Gland

Material Polyamide 6 / Nickel Plated Brass

Sealing Chloroprene

Vent Element PTFE

Flat Sealing Washer Perbunan - at Polyamide

O-Ring Perbunan - at Nickel Plated Brass

Operating Temperature -20°C to +100°C

Thread Metric acc. to EN 60423 / PG acc. to DIN 40430

Protection Class IP66 / IP67

Note To avoid water condensation in highly sealed enclosures.

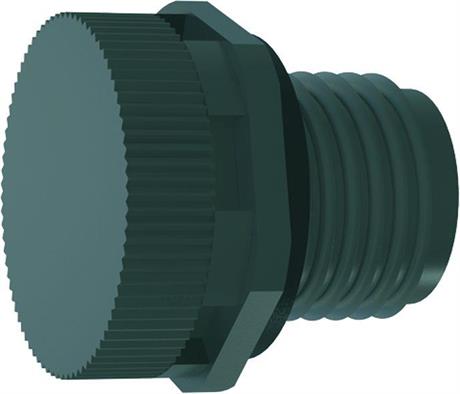

Kondens og Lufte Nippel PBE Polyamide 2nd Generation

Material Polyamide 6

Membrane Acryl-CoPolymer

O-Ring Perbunan

Operating Temperature -20°C to +100°C

Thread Metric acc. to EN 60423

Protection Class IP66 / IP68 / IP69k

Kondens og Lufte Nippel UL-PBE Polyamide + Stainless Steel

Material Polyamide 66 or Stainless Steel 303

Membrane Acryl-CoPolymer

O-Ring Perbunan

Operating Temperature Polyamide: -20°C to +100°C and Stainless Steel: -40°C to +105°C

Thread Metric acc. to EN 60423

Protection Class M 12x1.5: IP66 / IP67 / IP69k / IP69k / M 40x1.5: IP66 / IP67 M 40x1.5: IP66 / IP67

Note To avoid water condensation in highly sealed enclosures.

Kondens og Lufte Nippel PBE Polyamide + Stainless Steel

Material Polyamide 6 / Stainless Steel (303/316L)

Membrane Acryl-CoPolymer

Flat Sealing Washer Perbunan - at Polyamide

O-Ring Perbunan - at Stainless Steel

Operating Temperature Polyamide: -20°C to +100°C / Stainless Steel: -40°C to +105°C

Thread Metric acc. to EN 60423 (Further on Request)

Protection Class IP66 / IP68 / IP69k

Note To avoid water condensation in highly sealed enclosures.

Kondens og lufte Nippel PBE Polyamide + Stainless Steel M 40

Material Polyamide 6 / Stainless Steel 303

Membrane Acryl-CoPolymer

Flat Sealing Washer Perbunan - at Polyamide

O-Ring Perbunan - at Stainless Steel

Operating Temperature Polyamide: -20°C to +100°C / Stainless Steel: -40°C to +105°C

Thread Metric acc. to EN 60423

Protection Class IP66 / IP67

Note To avoid water condensation in highly sealed enclosures. Supplied incl. locknut.

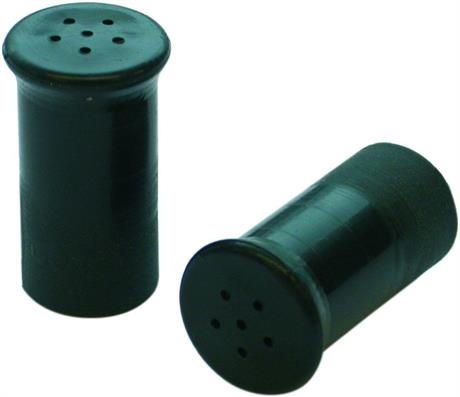

Kondens og lufte plugg til alle type nipler / Plug-In PBE

Material: Polyamide 6

Membrane: Polyacrylat

Operating Temperature: -30°C to +100°C

Protection: Class IP65

Note: To avoid water condensation in highly sealed enclosures. For use in unused cable glands.

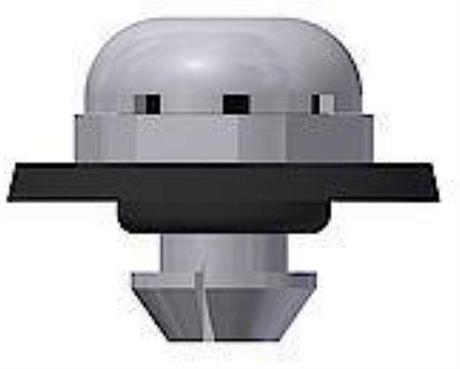

Kondens og luft Nippel Snap-PBE

Material: Polyamide 6

Membrane: Acryl-CoPolymer

Flat Sealing: Washer Perbunan

Operating Temperature: -20°C to +100°C

Protection Class: IP65

Note: To avoid water condensation in highly sealed enclosures.
