Trykk på bilde for datablad

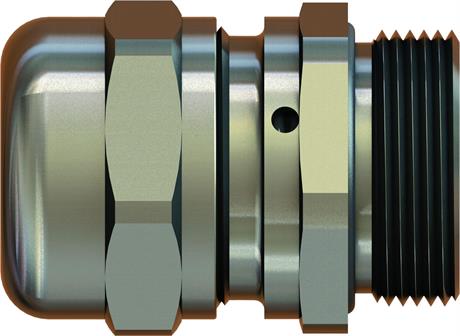

Kondens og luft Nippel Pressure Balance Cable Gland

Material Nickel Plated Brass

Sealing Chloroprene

Vent Element PTFE

O-Ring Perbunan - at Nickel Plated Brass

Operating Temperature -20°C to +100°C

Thread Metric acc. to EN 60423, PG acc. to DIN 40430

Protection Class IP66 / IP67

To avoid water condensation in highly sealed enclosures.

Trykk på bilde for datablad

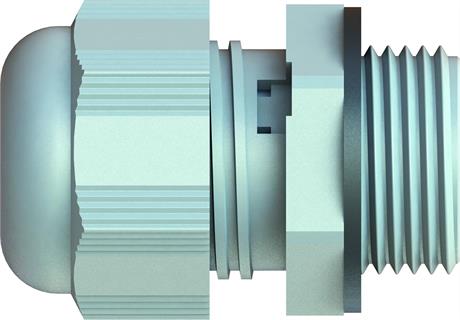

Kondens og lufte Nippel: Pressure Balance Cable Gland

Material Polyamide 6 / Nickel Plated Brass

Sealing Chloroprene

Vent Element PTFE

Flat Sealing Washer Perbunan - at Polyamide

O-Ring Perbunan - at Nickel Plated Brass

Operating Temperature -20°C to +100°C

Thread Metric acc. to EN 60423 / PG acc. to DIN 40430

Protection Class IP66 / IP67

Note To avoid water condensation in highly sealed enclosures.

Trykk på bilde for datablad

Kondens og Lufte Nippel PBE Polyamide 2nd Generation

Material Polyamide 6

Membrane Acryl-CoPolymer

O-Ring Perbunan

Operating Temperature -20°C to +100°C

Thread Metric acc. to EN 60423

Protection Class IP66 / IP68 / IP69k

Trykk på bilde for datablad

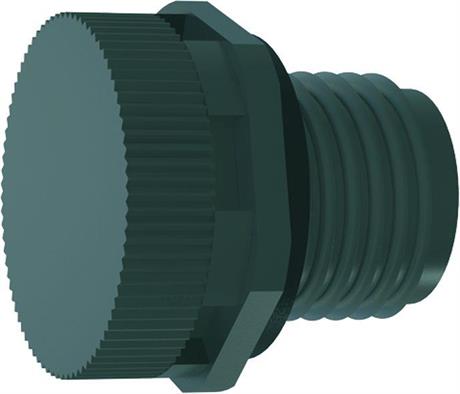

Billig! Kondens og Lufte Nippel PBE Polyamide

Material Polyamide 6

Membrane Acryl-CoPolymer

Flat Sealing Washer Perbunan - at Polyamide

Operating Temperature Polyamide: -20°C to +100°C

Thread Metric acc. to EN 60423 (Further on Request)

Protection Class IP66 / IP68 / IP69k

Note To avoid water condensation in highly sealed enclosures.

Trykk på bilde for datablad

Kondens og Lufte Nippel UL-PBE Polyamide

Material Polyamide 66

Membrane Acryl-CoPolymer

Operating Temperature Polyamide: -20°C to +100°C

Thread Metric acc. to EN 60423

Protection Class M 12x1.5: IP66 / IP67 / IP69k / IP69k / M 40x1.5: IP66 / IP67 M 40x1.5: IP66 / IP67

Note To avoid water condensation in highly sealed enclosures.

UL og UV godkjent

Trykk på bilde for datablad

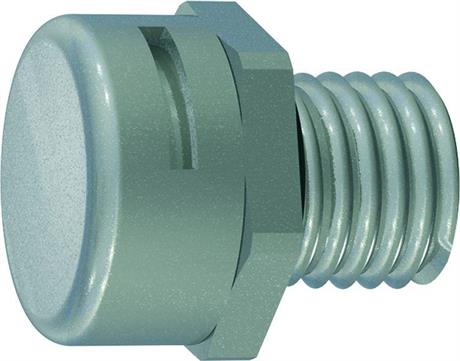

Billig! Kondens og Lufte Nippel PBE Stainless Steel

Material Polyamide 6 / Stainless Steel (303/316L)

Membrane Acryl-CoPolymer

Flat Sealing Washer Perbunan - at Polyamide

O-Ring Perbunan - at Stainless Steel

Operating Temperature Polyamide: -20°C to +100°C / Stainless Steel: -40°C to +105°C

Thread Metric acc. to EN 60423 (Further on Request)

Protection Class IP66 / IP68 / IP69k

Note To avoid water condensation in highly sealed enclosures.

Trykk på bilde for datablad

Kondens og Lufte Nippel UL-PBE Stainless Steel

Material Stainless Steel 303

Membrane Acryl-CoPolymer

O-Ring Perbunan

Operating Temperature Stainless Steel: -40°C to +105°C

Thread Metric acc. to EN 60423

Protection Class M 12x1.5: IP66 / IP67 / IP69k / IP69k / M 40x1.5: IP66 / IP67 M 40x1.5: IP66 / IP67

Note To avoid water condensation in highly sealed enclosures.

UL og UV godkjent

Trykk på bilde for datablad

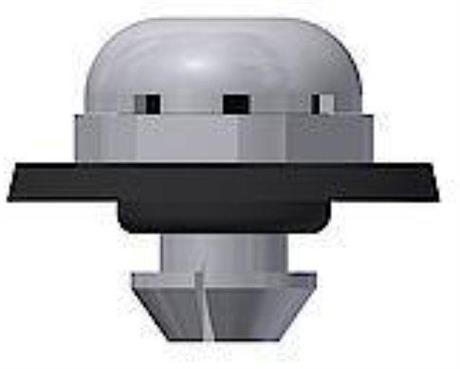

Kondens og luft Nippel Snap-PBE

Material: Polyamide 6

Membrane: Acryl-CoPolymer

Flat Sealing: Washer Perbunan

Operating Temperature: -20°C to +100°C

Protection Class: IP65

Note: To avoid water condensation in highly sealed enclosures.

Trykk på bilde for datablad

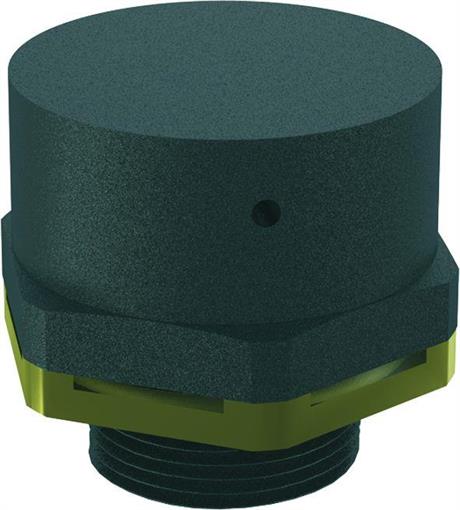

Kondens og lufte Nippel PBE Polyamide

Material Polyamide 6

Membrane Acryl-CoPolymer

Flat Sealing Washer Perbunan - at Polyamide

Operating Temperature Polyamide: -20°C to +100°C

Thread Metric acc. to EN 60423

Protection Class IP66 / IP67

Note To avoid water condensation in highly sealed enclosures. Supplied incl. locknut.

Trykk på bilde for datablad

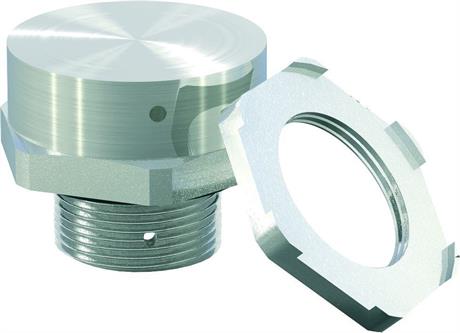

Kondens og lufte Nippel PBE Stainless Steel M 40

Material Stainless Steel 303

Membrane Acryl-CoPolymer

O-Ring Perbunan - at Stainless Steel

Operating TemperatureStainless Steel: -40°C to +105°C

Thread Metric acc. to EN 60423

Protection Class IP66 / IP67

Note To avoid water condensation in highly sealed enclosures. Supplied incl. locknut.

Trykk på bilde for datablad

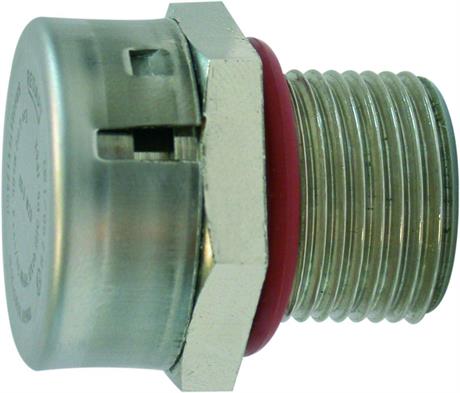

Ex / ATEX Kondens og lufte Nippel: PBE Stainless Steel Ex e

Material Stainless Steel (303/316L)

O-Ring Perbunan

Operating Temperature -40°C to +100°C

Thread Metric acc. to EN 60423

Protection Class IP66

ATEX Marking Ex II 2 G / Ex e IIC Gb / Ex II 2 D / Ex tb IIIC Db

Note To avoid water condensation in highly sealed enclosures.

Trykk på bilde for datablad

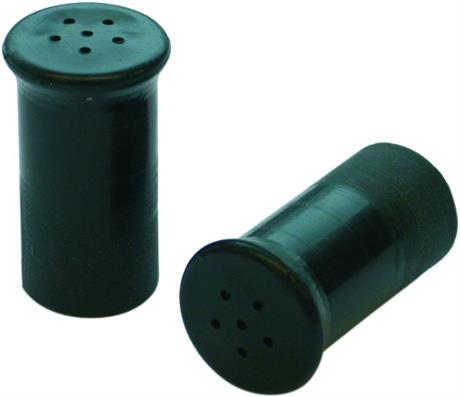

Kondens og lufte plugg til alle type nipler / Plug-In PBE

Material: Polyamide 6

Membrane: Polyacrylat

Operating Temperature: -30°C to +100°C

Protection: Class IP65

Note: To avoid water condensation in highly sealed enclosures. For use in unused cable glands.

Trykk på bilde for datablad

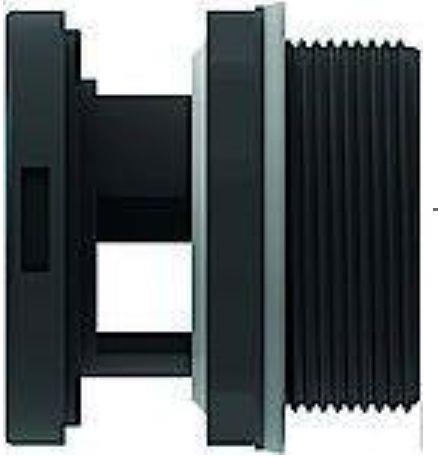

Mini drenerings/lufte nippel: Mini Drain Plug

Material Polyamide 6

Flat Sealing Washer EPDM

Operating Temperature -20°C to +100°C

Thread Metric acc. to EN 60423

Protection Class IP66

Note To drain enclosures with lower protection rating (usually < IPX5). Supplied incl. special locknut.

Trykk på bilde for datablad

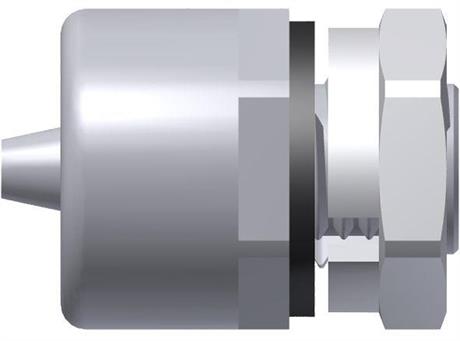

Ex / ATEX drenerings/lufte Nippel: Breather-Drainer Ex e

Material Nickel Plated Brass; Natural Brass; Stainless Steel 316L; Aluminium; Polyamide

O-Ring Nitrile (Further on Request)

Operating Temperature -30°C to +85°C - at Nickel Plated Brass (others see product documentation)

Thread Metric acc. to EN 60423 NPT acc. to ANSI B1.20.1

Protection Class IP66

ATEX Marking Ex II 2 GD / Ex e IIC Gb / Ex tb IIIC Db / Ex I M2 / Ex e I/II Mb GB / Ex tb IIIC Db

Note Supplied incl. special locknut.

Trykk på bilde for datablad

Ex / ATEX drenerings/lufte nippel: Breather-Drainer Ex e/d

Material Nickel Plated Brass; Natural Brass; Stainless Steel 316L

O-Ring Silicone (Further on Request)

Operating Temperature -30°C to +150°C

Thread Metric acc. to EN 60423 / NPT acc. to ANSI B1.20.1

Protection Class IP66

ATEX Marking Ex II 2 GD / Ex d IIC Gb / Ex e IIC Gb / Ex tb IIIC Db / Ex I M2 / Ex d I Mb GB / Ex e I Mb

Note Supplied incl. special locknut.

Trykk på bilde for datablad

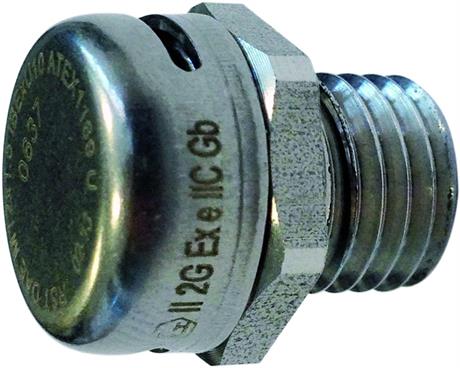

Ex / ATEX drenerings/lufte Nippel: Breather-Drainer Ex e

Material Stainless Steel 316L

O-Ring Nitrile (Further on Request)

Operating Temperature -30°C to +85°C - at Nickel Plated Brass (others see product documentation)

Thread Metric acc. to EN 60423 NPT acc. to ANSI B1.20.1

Protection Class IP66

ATEX Marking Ex II 2 GD / Ex e IIC Gb / Ex tb IIIC Db / Ex I M2 / Ex e I/II Mb GB / Ex tb IIIC Db

Note Supplied incl. special locknut.
