Trykk på bilde for datablad Trykk på bilde for datablad

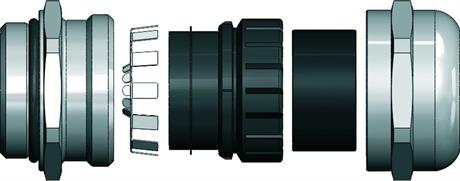

EMC Nippel Euro-Top EMC (4th Generation)

Material Nickel plated Brass

Sealing Cloroprene

Clamping Insert Polyamide 6

O-Ring Perbuna

Operating Temperature -40°C to +100°C

Intermittent -40°C to +150°C

Protection Class IP66 / IP68 / IP69k





Trykk på bilde for datablad Trykk på bilde for datablad

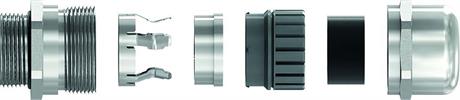

EMC Nippel Euro-Top EMC (3rd Generation)

Sealing Chloroprene

Clamping Insert Polyamide 6

O-Ring Perbunan

Operating Temperature -40°C to +100°C

Intermittent -40°C to +150°C

Thread Metric acc. to EN 60423

Protection Class IP66 / IP68 / IP69



Trykk på bilde for datablad Trykk på bilde for datablad

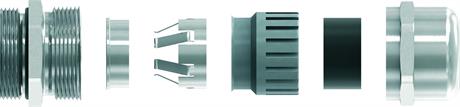

EMC Nippel Euro-Top EMC (2nd Generation)

Sealing Chloroprene

Clamping Insert Polyamide 6

O-Ring Perbunan

Operating Temperature -40°C to +100°C

Intermittent -40°C to +150°C

Thread Metric acc. to EN 60423

Protection Class IP66 / IP68 / IP69





Trykk på bilde for datablad Trykk på bilde for datablad

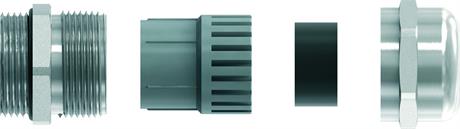

EMC Nippel Inter-Top EMC

Material Nickel Plated Brass

Sealing Chloroprene

Clamping Insert Polyamide 6

O-Ring Perbunan

Operating Temperature -30°C to +120°C

Thread Metric acc. to EN 60423

Protection Class IP68



Trykk på bilde for datablad Trykk på bilde for datablad

EMC Nippel Euro-Top Hygienic EMC

Material Stainless Steel (303)

Sealing FDA Approved Thermoplastic Elastomer

Operating Temperature -20°C to +100°C

Intermittent -40°C to +150°C

Thread Metric acc. to EN 60423

Protection Class IP66 / IP68 / IP69

Note Delivery incl. locknut.











Trykk på bilde for datablad Trykk på bilde for datablad

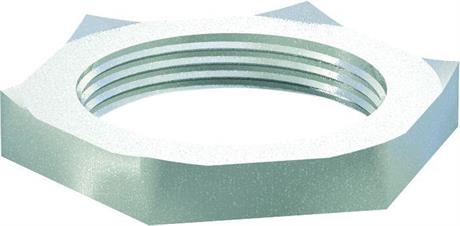

EMC Mutter Metal

Material Natural Brass; Nickel Plated Brass

Steinless Steel 316L (Futher on Request)

Thread Metric acc. to EN 60423

Protection Class IP66 / IP68



Trykk på bilde for datablad Trykk på bilde for datablad

EX / ATEX EMC Nippel Material Nickel Plated Brass or Stainless Steel

Sealing Neoprene

O-Ring Perbunan

Operating Temperature -20°C to +80°C

Thread Metric acc. to ISO 965-1 / 965-3

Protection Class IP66 / IP68

ATEX Marking Ex II 2 GD / Ex eb IIC / Ex nRc IIC / Ex tb IIIC



Trykk på bilde for datablad Trykk på bilde for datablad

Ex / ATEX EMC Nippel ADE 4F (for armoured cable)

Material Nickel Plated Brass

Stainless 316L (Further on Request)

Sealing Silicone

Operating Temperature -60C to + 140C

Thread Metric acc. to ISO 965-1 / 965-3

Protection Class IP66 / IP68

ATEX Marking Ex Ill2 GD / Ex db llC / Ex eb IIC / Ex tb lllC / Ex IM2 / Ex db l / Ex eb l



Trykk på bilde for datablad Trykk på bilde for datablad

Ex / ATEX EMC Nippel RAD (for armoured cable)

Material Nickel Plated Brass ( Further on Request)

Sealing EPDM (Silicone on Request)

Operating Temperature -40C to +100C

(Silicone: -65C to +220C)

Thread Metric acc. to ISO 262 (Further on Request)

Protection Class IP66 / IP68

ATEX Marking Ex ll 2 GD / Ex d llC Gb / Ex e llCGb / Ex tb lllC Db / Ex l M2 / Ex d l Mb / Ex e l Mb



Trykk på bilde for datablad Trykk på bilde for datablad

Ex / ATEX EMC Nippel E1WBF (for armoured cable)

Material Natural Brass (Further on Request)

Sealing Neoprene (Silicone on Request)

Operating Temperature -20C to +85C

(Silicone; -60C to +180C)

Thread Metric acc. to EN 60423 (Further on Request)

Protection Class IP6 /IP68

ATEX Marking Ex ll 2 GD / Ex d llC / Ex e llC Gb / Ex ta lllC Da
