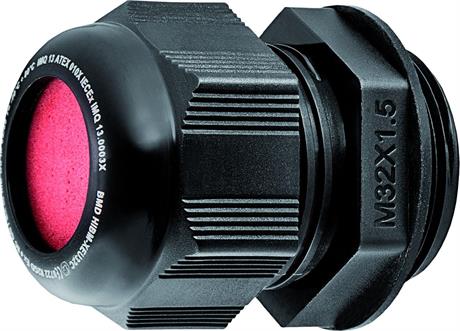

Ex / ATEX Nippel: Euro-Top X 4th Generation Polyamide

Material Polyamide 6

Sealing Chloroprene (CR) / Silicone (SIL)

Flat Sealing Washer Chloroprene (CR) / Silicone (SIL)

Operating Temperature CR: -40°C to +70°C and SIL: -60°C to +70°C

Thread Metric acc. to ISO 965-3 (Further on Request)

Protection Class IP66 / IP68

ATEX Marking Ex II 2 G / Ex eb IIC Gb / Ex II 2 D / Ex tb IIIC Db

Note Impact Resistance 7 Joule.

Trykk på bilde for datablad Trykk på bilde for datablad

Ex / ATEX Nippel: Euro-Top X 4th Generation Polyamide Double Sealing.

Material Polyamide 6

Sealing Chloroprene (CR) / Silicone (SIL)

Flat Sealing Washer Chloroprene (CR) / Silicone (SIL)

Operating Temperature CR: -40°C to +70°C and SIL: -60°C to +70°C

Thread Metric acc. to ISO 965-3 (Further on Request)

Protection Class IP66 / IP68

ATEX Marking Ex II 2 G / Ex eb IIC Gb / Ex II 2 D / Ex tb IIIC Db

Note Impact Resistance 7 Joule.

Trykk på bilde for datablad Trykk på bilde for datablad

Ex / ATEX Nippel: Euro-Top X3 HI Polyamide

Material Polyamide 6

Sealing Chloroprene (CR) / Silicone (SIL)

Flat sealing Chloroprene (CR) / Silicone (SIL)

Operating Temperatures  -40°C to +70°C (Chloroprene) and -60°C to +70°C (Silicone)

Thread metric acc. to ISO 965-1/965-3

Protection class IP66 / IP68

Certificate IMQ 13 ATEX 010X

Marking Ex II 2 GD / Ex e IIC Gb / Ex tb IIIC Db IP66/68

Note Impact resistance 7 Joule / EN60079-0:2012 / DNV-GL



Trykk på bilde for datablad Trykk på bilde for datablad

Ex / ATEX Nippel: Euro-Top X3 HI Polyamide Double Sealing

Material Polyamide 6

Sealing Chloroprene (CR) / Silicone (SIL)

Flat sealing Chloroprene (CR) / Silicone (SIL)

Operating Temperatures  -40°C to +70°C (Chloroprene) and -60°C to +70°C (Silicone)

Thread metric acc. to ISO 965-1/965-3

Protection class IP66 / IP68

Certificate IMQ 13 ATEX 010X

Marking Ex II 2 GD / Ex e IIC Gb / Ex tb IIIC Db IP66/68

Note Impact resistance 7 Joule / EN60079-0:2012 / DNV-GL



Trykk på bilde for datablad Trykk på bilde for datablad

Ex / ATEX / EMC Nippel: Newcap CT EMC

Material Nickel Plated Brass / Stainless Steel

Sealing Neoprene

O-Ring Perbunan

Operating Temperature -20°C to +80°C

Thread Metric acc. to ISO 965-1 / 965-3

Protection Class IP66 / IP68

ATEX Marking Ex II 2 GD / Ex eb IIC / Ex nRc IIC / Ex tb IIIC



Trykk på bilde for datablad Trykk på bilde for datablad

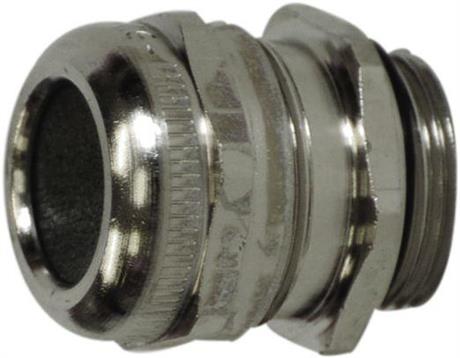

Ex / ATEX / Nippel: Newcap MS

Material Nickel Plated Brass / Stainless Steel

Sealing Neoprene

O-Ring Perbunan

Operating Temperature -20°C to +80°C

Thread Metric acc. to ISO 965-1 / 965-3

Protection Class IP66 / IP68

ATEX Marking Ex II 2 GD / Ex eb IIC / Ex nRc IIC / Ex tb IIIC



Trykk på bilde for datablad Trykk på bilde for datablad

Ex / ATEX Nippel: RN (for non-armoured cable)

Material Nickel Plated Brass (Futher on Request)

Sealing EPDM (Silicone on Request)

Operating Temperature -40C to +100C / (Silicon -65C to +220C)

Thread Metric acc. to ISO 262 (Futher on Request)

Protection Class IP66 / IP8

ATEX Marking Ex ii 2 GD / Ex d iiC Gb / Ex e llC / Ex tb lllC Db

Exl M2 / Ex d l Mb / Ex e l Mb



Trykk på bilde for datablad Trykk på bilde for datablad

Ex / ATEX Nippel: EAlpha (for non-armoured cable)

Material Nickle Plated Brass (Futher on Request)

Sealing Chloroprene (Silicon on Request)

O-Ring Perbunan (Silicone on Request)

Operating Temperature -40C to +85C (Silicone -60c to +80C)

Thread Metric acc. to ISO 965-3 (Futher on Request)

Protection Class IP6 /IP68

ATEX Marking Ex ll 2 GD / Ex d ll Gb / Ex e llCGb / ex tb lllC Db



Trykk på bilde for datablad Trykk på bilde for datablad

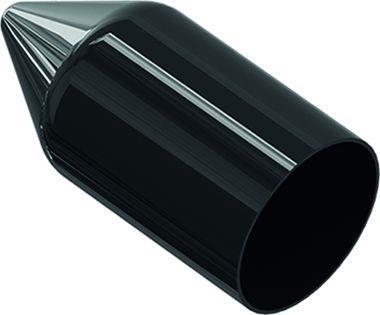

Plasthette / Bekyttelse til nippel

For EAlpha og Gamma

For A2LBF, RN, E1WBF and RAD på forespørsel.

PVC hette for å beskytte nipler



















Trykk på bilde for datablad Trykk på bilde for datablad

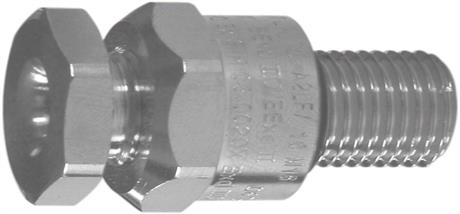

Ex / ATEX Nippel: A2LBF (for non-armoured cable)

Material Natural Brass (Further on Request)

Sealig Neoprene (Silicon on Reguest)

O-Ring Perbunan (Silicon on Request)

Operating Temperature -20C to +85C (Silicon: -60C to + 180C)

Thread Metric acc. to EN 60423 (Further on Request)

Protection Class IP66 / IP68

ATEX Markong Ex ll 2 GD / Ex d llC Gb / Ex e llC Gb / Ex ta lllC Da



Trykk på bilde for datablad Trykk på bilde for datablad

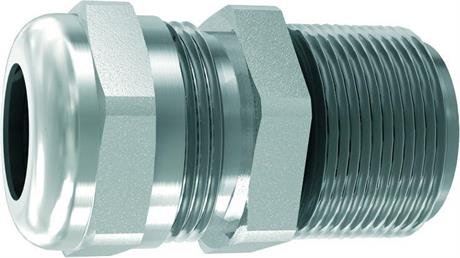

Ex / ATEX Nippel: ADE 1F2 (for non-armoured cable)

Material Nickel Plated Brass / Stainless Steel 316L (Further on Request)

Sealing Silicon

Operating Temperature -60C to +140C

Thread Metric acc.to ISO 965-1 /965-3

Protection Class IP6 / IP68

ATEX Marking Ex ll 2 GD / Ex db llC / Ex eb llC / Ex tb lllC



Trykk på bilde for datablad Trykk på bilde for datablad

Ex / ATEX Nippel: ADE 4F (for armoured cable)

Material Nickel Plated Brass / Stainless Steel 316L (Further on Request)

Sealing Silicon

Operating Temperature -60C to +140C

Thread Metric acc. to ISO 965-1 / *65-3

Protection Class IP66 / IP68

ATEX Marking Ex ll 2 GD / Ex db llC / Ex eb llC / Ex tb lllC / Ex l M2 / Ex db l / Ex eb l



Trykk på bilde for datablad Trykk på bilde for datablad

Ex / ATEX Nippel: RAD (for armoured cable)

Material Nickel Plated Brass ( Further on Request

Sealing EPDM (Silicon on Request)

Operating Temperature -40C to +100C (Silicon -65 to +220C)

Thread: Metric acc. to ISO 262 (Further on Request)

Protection Class IP68 / IP68

ATEX Marking Ex ll 2 GD / Ex d llC Gb / Ex e llC Gb / Ex tb lllC Db / Ex lM2 / Ex d l Mb / Ex e l Mb



Trykk på bilde for datablad Trykk på bilde for datablad

Ex / ATEX Nippel: Gamma X Universal (for armoured cable)

Material: Nickel Plated Brass (Further on Request)

Sealing: Chloroprene (Silicone on Request)

O-Ring: Perbunan (Silicon on Request)

Operating Temperature: -40C to +100C (Silicon -60C to +130C)

Thread Metric acc. to EN 60423 (Further on Request)

Protection Class: IP66 / IP68

ATEX Marking: Ex ll 2 GD / Ex d llC Gb / Ex e llC Gb / Ex lllC Db.



Special The Gamma x Universal is equipped with additional cone ring, which allows to use it with SWA cables an as well SWB and STA cables.





Trykk på bilde for datablad Trykk på bilde for datablad

Ex / ATEX Nippel:E1WBF (for armoured cable)

Material: Natural Brass (Further on Requsest9

Sealing: Neoprene (Silicon on Reguest)

Operating Temperature -20C to +85C (Silicone -60 to +180C)

Thread: Metric acc. to EN 60423 (Further on Request)

Protection Class: IP66 / IP68

ATEX Marking: Ex ll 2 GD / Ex d llC Gb / Ex e llC Gb / Ex ta lllC Da



Trykk på bilde for datablad Trykk på bilde for datablad

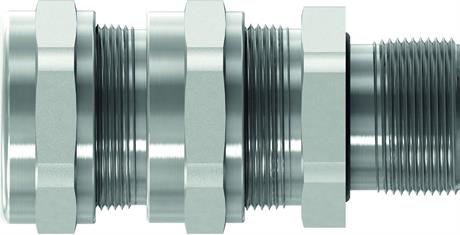

Ex / ATEX Nippel: RNC Ex Conduit Gland

Material Nickel Plated Brass (Further on Request)

Sealing EPDM (Silicone on Request)

Operating Temperature -40°C to +100°C / (Silicone: -65°C to +220°C)

Thread Metric acc. to ISO 262 (Further on Request)

Protection class IP66 / IP68

ATEX-Marking Ex II 2 GD / Ex d IIC Gb / Ex e IIC Gb / Ex tb IIIC Db / Ex I M2 / Ex d I Mb / Ex e I Mb

Note Allows the installation of non-ex-proof fittings.



Trykk på bilde for datablad Trykk på bilde for datablad

Ex / ATEX blindpropp: Protection Tabs X3

Material Polyamide 6

Operating Temperature -40°C to +70°C

Note!!

For closing not used Euro-Top X3 HI cable glands water- and dust proof.

Trykk på bilde for datablad Trykk på bilde for datablad

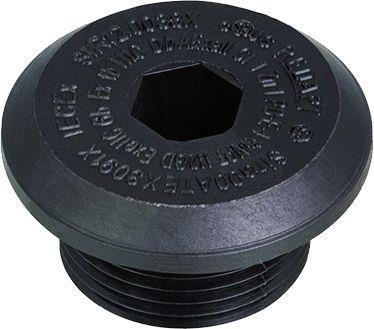

Ex / ATEX blindplugg: Hexagonal Screw Plug X3 HI

Material Polyamide 66

Flat Sealing Washer Chloroprene (CR) / Silicone (SIL)

Operating Temperature -40°C to +70°C / (Silicone: -60°C to +70°C)

Thread Metric acc. to EN 60423

Protection Class IP66 / IP68

ATEX Marking Ex II2 GD / Ex e IIC Gb / Ex tb IIIC Db

Note For the closing of unused holes of machines and enclosures.

Trykk på bilde for datablad Trykk på bilde for datablad

Ex / ATEX blindplugg: Dome Head Stopping Plug

Material Polyamide 6

O-Ring Perbunan (Viton on Request)

Operating Temperature -20°C to +40°C / (Viton: -5°C to +40°C)

Thread Metric acc. to EN 60423

Protection Class IP66 / IP68

ATEX Marking II2 GD / Ex e IIC Mb Gb / Ex tb IIIC Db

Note For the safe closing of unused holes at machines and enclosures.

Trykk på bilde for datablad Trykk på bilde for datablad

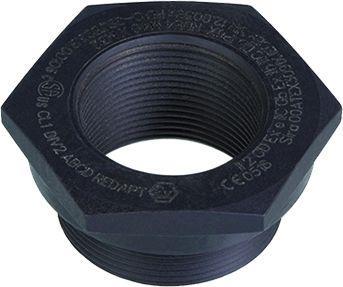

Ex / ATEX utvidelses nippel: Reducer

Material Polyamide 6

Operating Temperature -20°C to +40°C

Thread Metric acc. to EN 60423

Protection Class IP66 / IP68

ATEX Marking II2 GD / Ex e IIC Mb / Ex tb IIIC Db

Note For adapting thread types and sizes.

Trykk på bilde for datablad Trykk på bilde for datablad

Ex / ATEX reuserings nippel: Reducer

Material Polyamide 6

Operating Temperature -20°C to +40°C

Thread Metric acc. to EN 60423

Protection Class IP66 / IP68

ATEX Marking II2 GD / Ex e IIC Mb / Ex tb IIIC Db

Note For adapting thread types and sizes.

Trykk på bilde for datablad Trykk på bilde for datablad

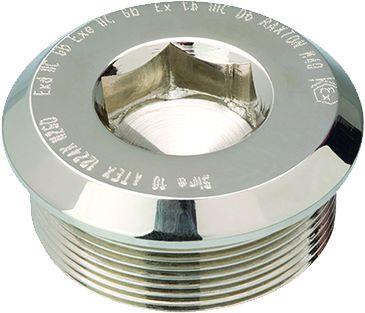

Ex / ATEX Hexagonal Screw Plug

Material Nicel Plated Brass / Stainless Steel 1.4404

Teperatures from -60C to +200C

Thrad M and NPT

 Trykk på bilde for datablad Trykk på bilde for datablad

Ex / ATEX Blindblugg: Dome Head Stopping Plug

Material Natural Brass; Nickel Plated Brass; / Stainless Steel 316L (Further on Request)

Thread Metric acc. to EN 60423 /

NPT acc. to ANSI B1.20.1

Protection Class IP68

ATEX Marking Ex II 2 G D / Ex d IIC Gb / Ex e IIC Gb / Ex tb IIIC Db

Note For the safe closing of unused holes at machines and enclosures.

Trykk på bilde for datablad Trykk på bilde for datablad

EX / ATEX utvidelse av Metal gjenger.

Material Natural Brass; Nickel Plated Brass; Stainless Steel 316L (Further on Request)

Thread Metric acc. to EN 60423

Protection Class IP66 / IP68

ATEX Marking Ex II2 GD / Ex d IIC Gb / Ex e IIC GB / Ex tb IIIC Db / Ex I M2 / Ex d I Mb / Ex e I Mb

Trykk på bilde for datablad Trykk på bilde for datablad

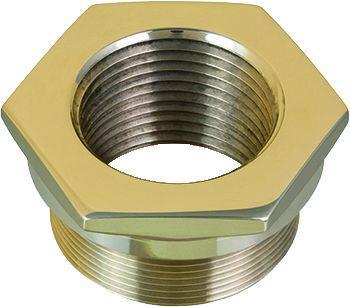

EX / ATEX redusening av Metal gjenger.

Material Natural Brass; Nickel Plated Brass; Stainless Steel 316L (Further on Request)

Thread Metric acc. to EN 60423

Protection Class IP66 / IP68

ATEX Marking Ex II2 GD / Ex d IIC Gb / Ex e IIC GB / Ex tb IIIC Db / Ex I M2 / Ex d I Mb / Ex e I Mb

Trykk på bilde for datablad Trykk på bilde for datablad

Ex / ATEX utvidelses/reduksjons nippel Adapter Metal

Material Natural Brass; Nickel Plated Brass; / Stainless Steel 316L (Further on Request)

Thread Metric acc. to EN 60423

Protection Class IP66 / IP67

ATEX Marking Ex II2 GD / Ex d IIC Gb / Ex e IIC GB / Ex tb IIIC Db / Ex I M2 / Ex d I Mb / Ex e I Mb

Note For adapting thread types and sizes.

For å utvide eller redusere Ex / ATEX gjenger.

Trykk på bilde for datablad Trykk på bilde for datablad

Ex / ATEX Adapter Metal

Material Natural Brass; Nickel Plated Brass; / Stainless Steel 316L (Further on Request)

Thread Metric acc. to EN 60423

Protection Class IP66 / IP67

ATEX Marking Ex II2 GD / Ex d IIC Gb / Ex e IIC GB / Ex tb IIIC Db / Ex I M2 / Ex d I Mb / Ex e I Mb

Note For adapting thread types and sizes.

Trykk på bilde for datablad Trykk på bilde for datablad

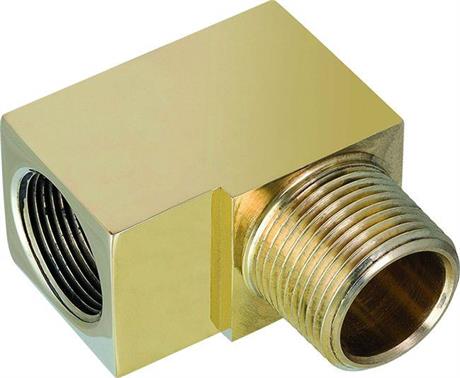

Ex / ATEX 90°-Adapter Metal

Material Natural Brass; Nickel Plated Brass; / Stainless Steel 316L (Further on Request)

Thread Metric acc. to EN 60423

Protection Class IP66 / IP68

ATEX Marking Ex II2 GD / Ex d IIC Gb / Ex e IIC Gb / Ex tb IIIC Db / Ex I M2 / Ex e I Mb / Ex e I Mb

Note For displacing the entry thread.
